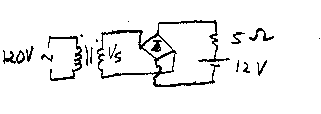

Battery Charger with Full Bridge:

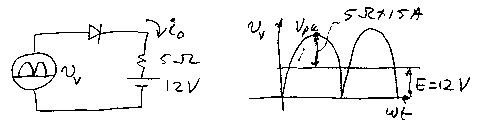

Equivalent DC Circuit:





Peak Charging Voltage: Vpeak= 12 V + (5 W )(15 A) = 87 V



Secondary Transformer Voltage: Vpeak/Ö 2= 61.5 V

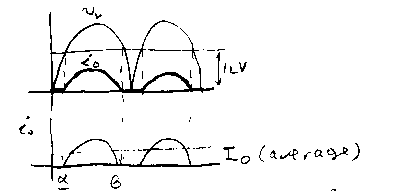

Battery Current Waveform:











From MatLab Simulation:

Rms of Battery Current:



From MatLab Simulation:



Dissipated Power (on charging resistance): Ploss = R(Io,rms)2 = 5x102.01 = 510.1 W



Average Charging Power:



From Matlab Simulation:





Stored Power: 611.7 – 510.1 = 101.7 W



Average dc Voltage: Vo = 12 +RIo = 55 V DC



DC Power: PDC = VI= 473 VA DC



Primary Current rms: IP = (61.5/120)Io,rms = 5.13 A



Transformer Rating: ST = VPI P= 615.6 VA



TUF:



TUF = PDC/ST= 473 VA DC/615.6 VA = 0.768 (76.8 %)
